Hot Dipped Iron Wire/ Hot Dipped Galvanized Wire

Hot dipped galvanized wire is a kind of wire going through hot dipped galvanizing treatment. What is hot dipped galvanizing?

Hot-dipped galvanizing is a physical reaction. After the chlorhydric acid pool and water pool, the iron wire will go through the drying panel and then enter the zinc stove. Hot-dip galvanizing is a form of galvanization. It is the process of coating iron, steel, or aluminum with a thin zinc layer, by passing the metal through a molten bath of zinc at a temperature of around 860 °F (460 °C). When exposed to the atmosphere, the pure zinc (Zn) reacts with oxygen (O2) to form zinc oxide (ZnO), which further reacts with carbon dioxide (CO2) to form zinc carbonate(ZnCO3), a usually dull grey, fairly strong material that stops further corrosion in many circumstances, protecting the steel below from the elements.

Material : Low carbon steel wire, medium carbon steel wire and high carbon steel wire

Tensile Strength: 400--500MPA

Hot dipped iron wire Usage:  It mainly used in communication equipment, medical equipment and weaving nets, brushes, cables, filters, high pressure pipe, construction, handicrafts and other industries.

Standard wire gauge: 8# - 24#.(See the below table)


Wire Diameter BWG(mm) SWG(mm)
8 4.191 4.046
9 3.759 3.658
10 3.404 3.251
11 3.048 2.946
12 2.769 2.642
13 2.413 2.337
14 2.108 2.032
15 1.829 1.829
16 1.651 1.626
17 1.473 1.422
18 1.245 1.219
19 1.067 1.016
20 0.839 0.914
21 0.813 0.813
22 0.711 0.711
23 0.635 0.61
24 0.559 0.559

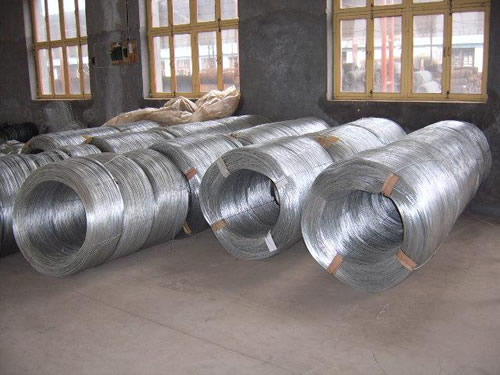

Hot Dipped Iron Wire
Hot Dipped Iron Wire in big packing

Production Process of Hot-dipped Galvanized Iron Wire:
Steel rod coil -- Wire Drawing -- Annealing -- Rust Removing -- Acid Washing -- Zinc Plating -- Wire Coil
